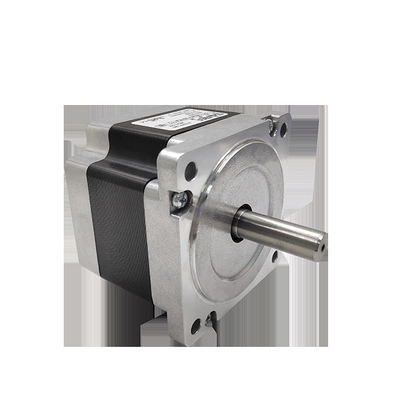

Samsr high precision nema 34 open-loop stepper motor 2.7N.m 3axis cnc kit high torque hybrid stepper motor SS3401AP45A
|
Brand |
Samsr |
|
Model |
SS3401AP45A |
|
Supply voltage |
24-75VDC |
|
Motor size |
86*86*67.5MM |
|
Certification |
CE, ISO, ROHS |
Product Detail
Feature:
Step angle:1.8° No of phases: 2
Rated voltage: 2.16V Rated current: 4.5A
Resistance: 0.48ohm (AT 20°C) Inductance:1.7mH
Holding torque: 2.7N.m(oz.in) Dielectric strength: 500V A.C
Insulation resistance: 100 MΩ Insulation class: Class B
Temperature rise: 80K (Max) Rotor inertia: 1100g.cm
Allowable thrust load: 80N Allowable radial load:270N(on the shaft end)
Operation ambient temp:0°C~+50°C Operation ambient hum: 15%~90%
Life: 5000Hours Weight: 2.0Kg
Option-NEMA 34 Motors
| Model | Phase | Rated voltage | Rated current | Resistance | Holding Torque | Motor length | Weight | Encoder | Brake | Single shaft | Dual shaft | IP grade |
| SS3400A40B | 2 | 2.6V | 4.0A | 0.65ohm | 3.0N.m | 60.0mm | 1.6kg | No | No | No | Yes | IP40 |
| SS3401A40A | 2 | 1.98V | 6.0A | 0.33ohm | 3.4N.m | 67.5mm | 1.88kg | No | No | Yes | No | IP40 |
| SS3402A45A | 2 | 2.52V | 4.2A | 0.6ohm | 3.2N.m | 78.5mm | 0.424kg | No | No | Yes | No | IP40 |
| SS3402A45B | 2 | 3.9V | 4.5A | 1.3ohm | 3.2N.m | 79.5mm | 2.4kg | No | No | No | Yes | IP40 |
| SS3402AP45A | 2 | 3.6V | 4.5A | 0.8ohm | 7.6N.m | 96.5mm | 3.04kg | No | No | Yes | No | IP40 |
| SS3403A60A | 2 | 4.0V | 4.0A | 1.0ohm | 8.0N.m | 118.5mm | 4.0kg | No | No | Yes | No | IP40 |
| SS3403A60D | 2 | 3.6V | 4.5A | 0.8ohm | 8.0N.m | 152.9mm | 4.0kg | No | Yes | Yes | No | IP40 |
| SS3403A60F1000 | 2 | 2.7V | 6.0A | 0.6ohm | 8.2N.m | 134.1mm | 1.6kg | 1000 line | No | Yes | No | IP40 |
| SS3403A60F1000D | 2 | 3.24V | 6.0A | 0.54ohm | 8.2N.m | 174.2mm | 3.6kg | 1000 line | Yes | No | No | IP40 |
| SS3403AP40A | 2 | 4.95V | 4.5A | 1.1ohm | 8.9N.m | 125.5mm | 4.25kg | No | No | Yes | No | IP40 |
| SS3404A60F1000 | 2 | 2.7V | 6.0A | 0.65ohm | 12N.m | 172.4mm | 5.0kg | 1000 line | No | Yes | No | IP40 |
| SS3404A64A | 2 | 4.2V | 6.0A | 0.7ohm | 10.7N.m | 156mm | 5.2kg | No | No | Yes | No | IP40 |
Configuration and Option driver:MD-2778
Related:Nema 8/11/14/17/23/24/42/54
Nema 8(20mm) Nema 17(42mm) Nema 23(57mm)
